Rear brake pads Fiat 124 Spider (66-85), 124 Coupé, 124 Berlina, Fiat X 1/9, 125, 132
Product number:
1168031
Product information "Rear brake pads Fiat 124 Spider (66-85), 124 Coupé, 124 Berlina, Fiat X 1/9, 125, 132"
Photo "INFO!" only assembly instruction. Brake caliper NOT included in delivery!

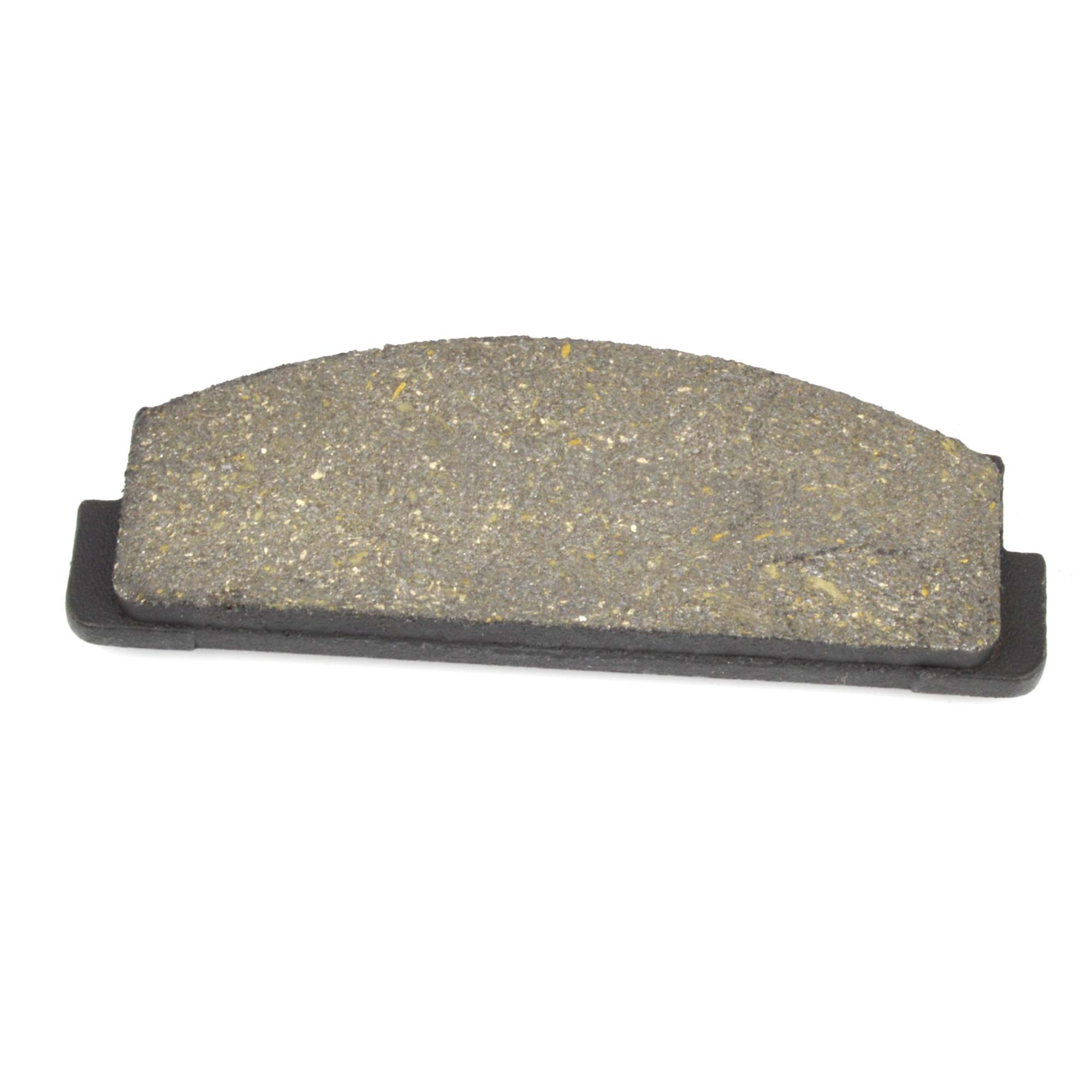

Set of brake pads for the rear axle.
| FIAT 124 Coupe AC (1400) |
| FIAT 124 Coupe BC (1400) |
| FIAT 124 Coupe CC (1600) |
| FIAT 124 Spider AS (1400) |
| FIAT 124 Spider BS1 (1600) |
| FIAT 124 Spider CS (1600) |
| FIAT 124 Spider CS0 (2000) |
| FIAT 124 Spider CS1 (1800) |
| FIAT 124 Spider CS2 (2000) |
| FIAT 124 Spider CSA (1800) |
| FIAT 124 Spider DS (2000) |
The piston of the rear brake calliper must be screwed in as far as it will go by turning it to the right (see picture: arrow) before fitting.
IMPORTANT: The groove (position 1) must be horizontal in the fitting position and the small marking groove (position 2) must be above the wide groove (i.e. on the side where the bleed nipple (position 3) is)!
This is the basic setting so that the function of the handbrake adjustment is also guaranteed.
