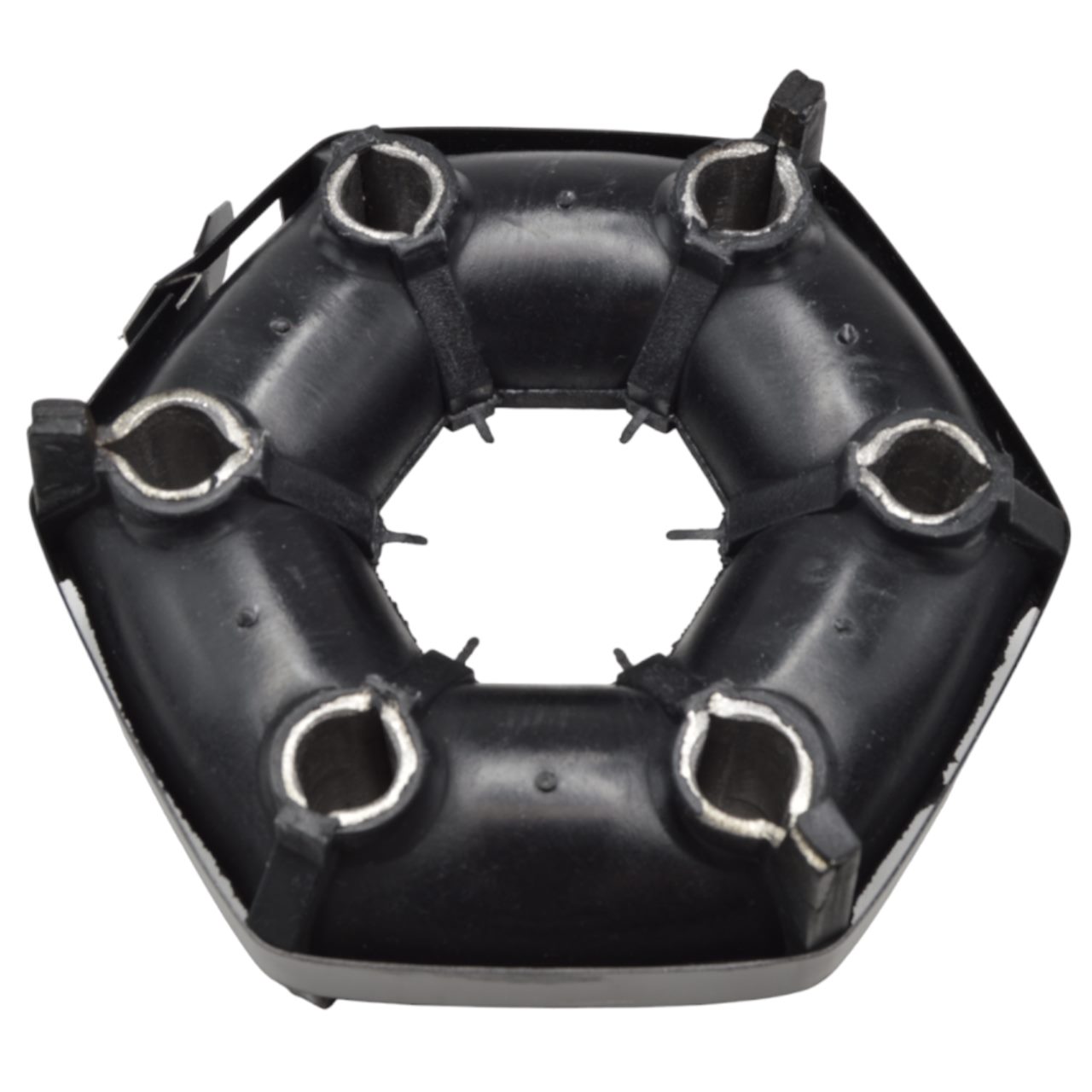

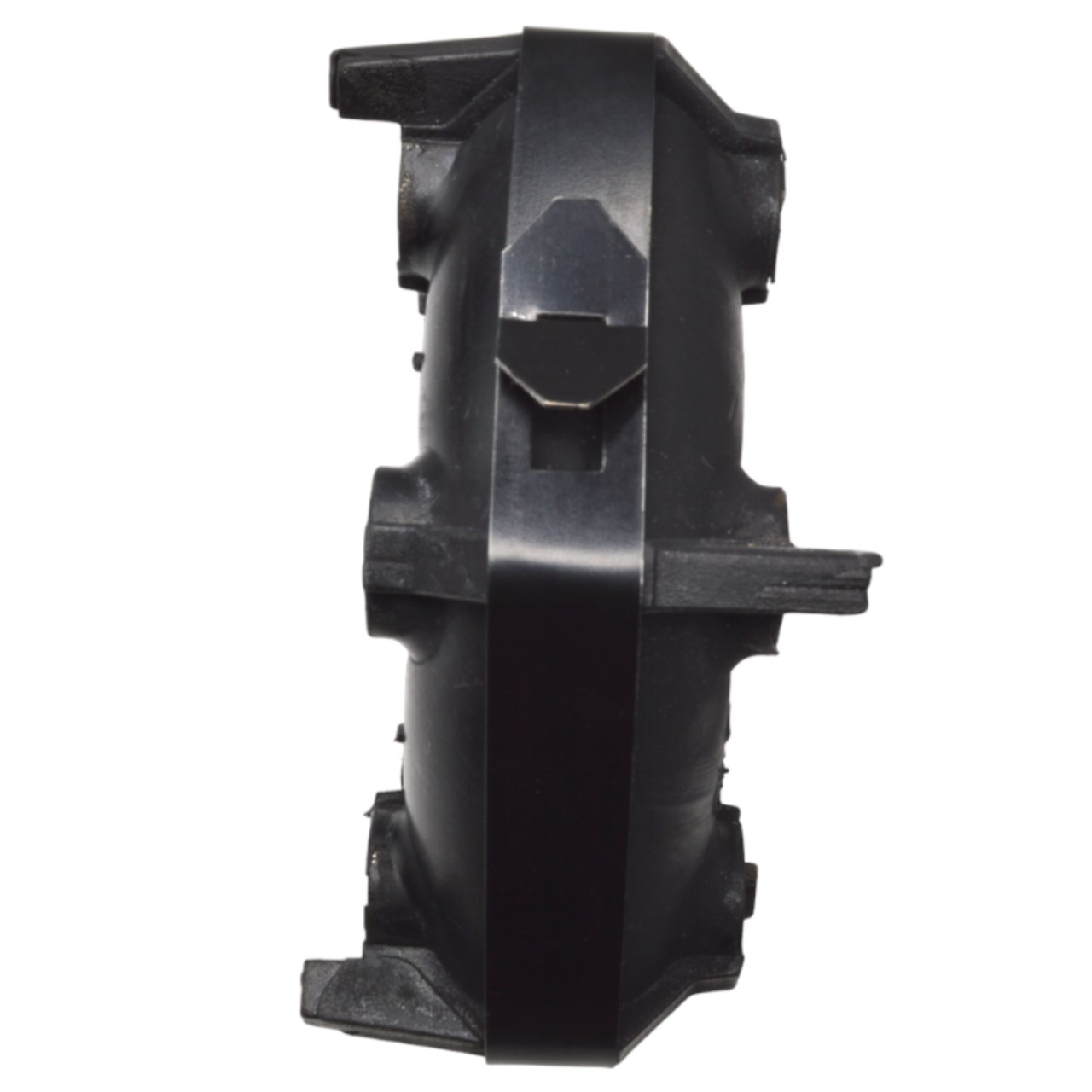

Hardy disc cardan shaft Fiat 124 Spider (66-85), 124 Coupé, 125, 131, 132
Product number:
1176031
Product information "Hardy disc cardan shaft Fiat 124 Spider (66-85), 124 Coupé, 125, 131, 132"
Hardy disc joint disc for cardan shaft / gearbox
Fiat 124 N/S/Coupé/Spider
Fiat 125 - Fiat 125 S
Fiat 131 - Fiat 132 - Fiat Argenta
Dimensions:
Outer diameter: 130 mm
Inner diameter: 50 mm
Width: 61 mm
| FIAT 124 Coupe AC (1400) |
| FIAT 124 Coupe BC (1400) |
| FIAT 124 Coupe CC (1600) |
| FIAT 124 Spider AS (1400) |
| FIAT 124 Spider BS (1400) |
| FIAT 124 Spider BS1 (1600) |
| FIAT 124 Spider CS (1600) |
| FIAT 124 Spider CS0 (2000) |
| FIAT 124 Spider CS1 (1800) |
| FIAT 124 Spider CS2 (2000) |
| FIAT 124 Spider CSA (1800) |
| FIAT 124 Spider DS (2000) |
| FIAT 124 Spider VX (2000) |
| Various |
Attention: After mounting the hardy disc, remove the mounting aid (the tension band)!
The hardy washer is mounted by screwing the bushes to the shafts to be connected, alternately connecting one bush to the drivebs shaft and another bush to the drivenbsshaft to ensure that the forces pass through the elastic washer.
