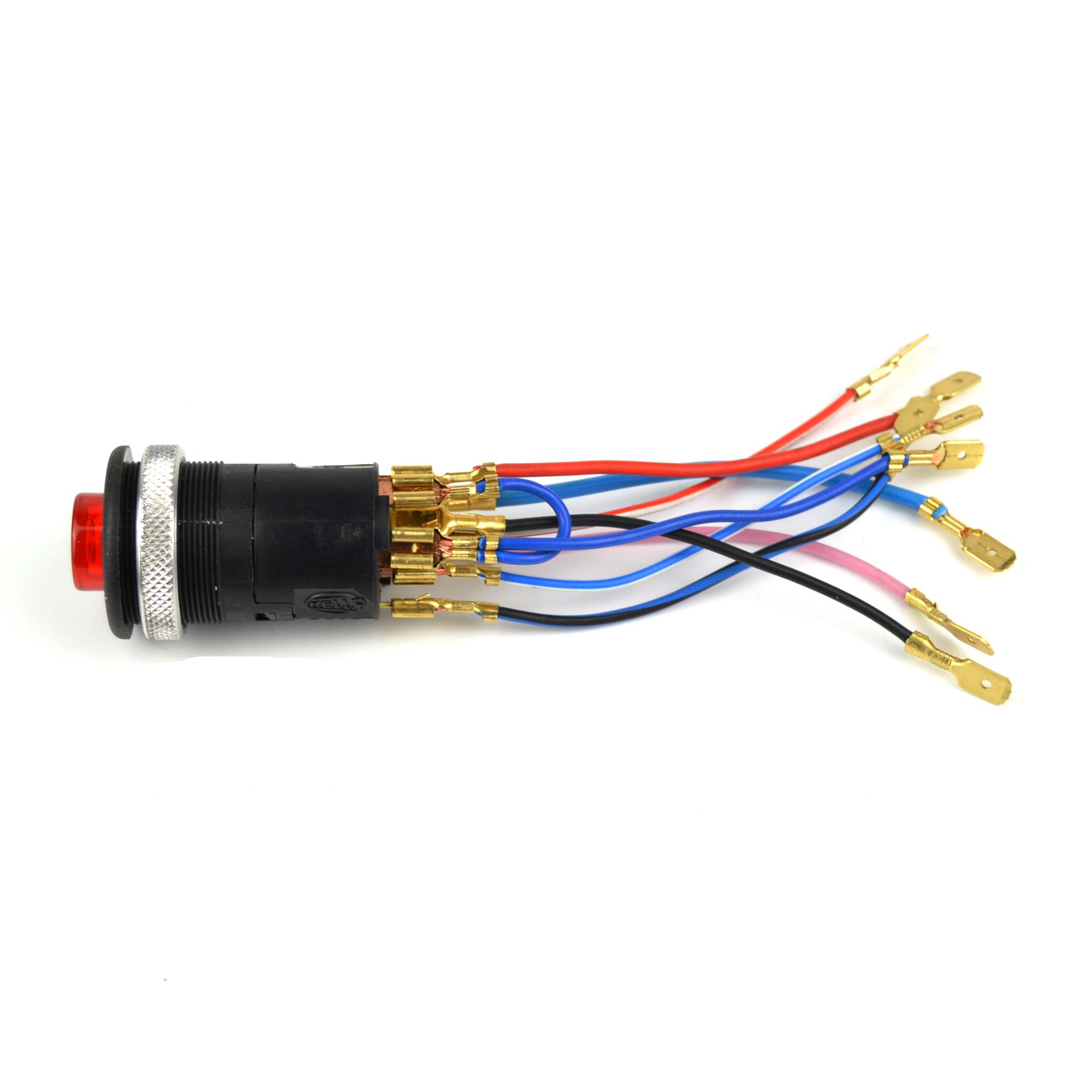

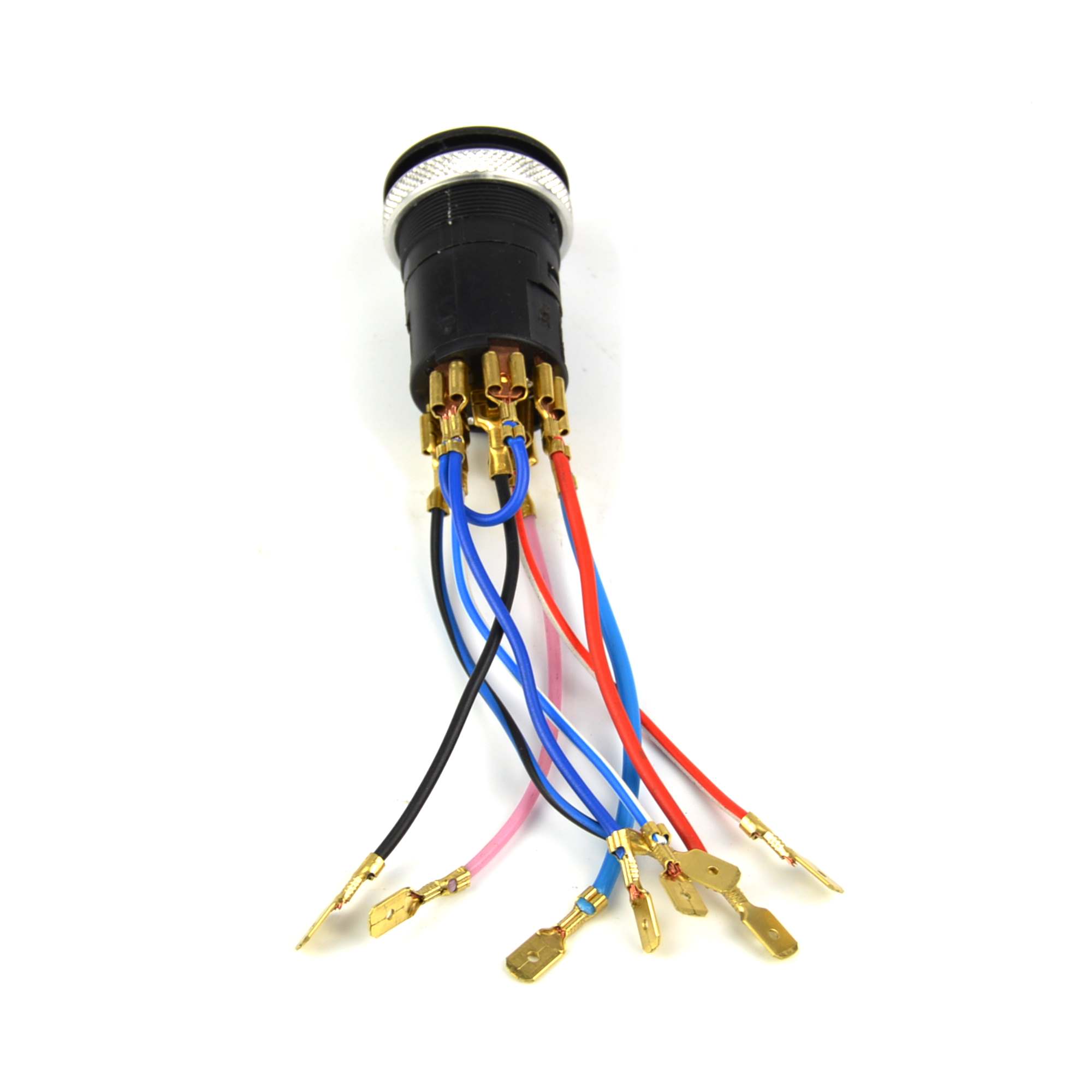

Hazard warning switch round Fiat 124 Spider US (79-82)
Diverse
Product number:
1182007
Product information "Hazard warning switch round Fiat 124 Spider US (79-82)"
Diameter of the inlet: 29,5mm
Rosette diameter: 35mm
| FIAT 124 Spider CS0 (2000) |
| FIAT 124 Spider CS2 (2000) |
The connectors on the connection side should be cleaned before installing the new switch. The connections of the switch must be insulated to avoid short circuits.
| NEW | ORIGINAL | |
| 30 | red | 30 |
| R | light blue | R |
| 49a | pink | 49a |
| L | black/blue | L |
| 15 | white/blue | 15 |
| 31 | black | 31 |
| 49/30b | dark blue | 49 |
| 58 | red/white | 58 |
